ICON 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT 91255

ICON 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT 91255

SKU:91255

Regular price $1,676.27
Regular price $1,676.27 Sale price $1,676.27
Sale Sold out

Ships from Manufacture

ICON 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT 91255



OVERVIEW

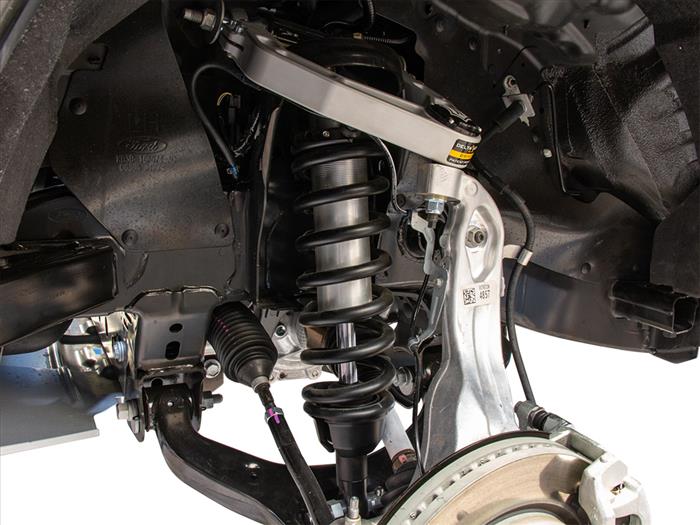

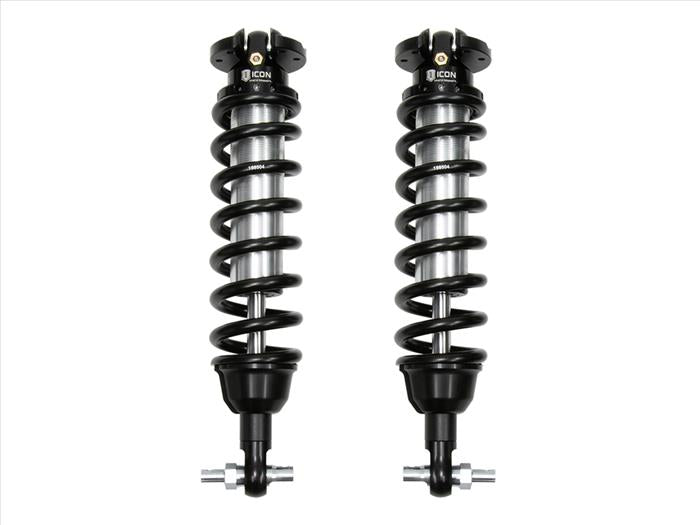

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving along with the larger 2.5” shock body and increased piston area over stock components yield superior ride quality and suspension performance both on- and off-road. Their extended travel length requires ICON front upper control arms and yields increased front wheel travel compared to ICON standard travel coilovers for maximum suspension performance. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.

FEATURES & BENEFITS

  • Adjustable coilovers yield 0-3.5” of front lift height
  • Vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended travel length requires ICON upper control arms but offers more wheel travel and improved performance
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" diameter shaft
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
  • TECH NOTE: Extended travel coilovers also require ICON front upper control arms. DO NOT install in conjunction with OE front upper control arms.
  • TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
  • TECH NOTE: Not compatible with Ranger Raptor.
