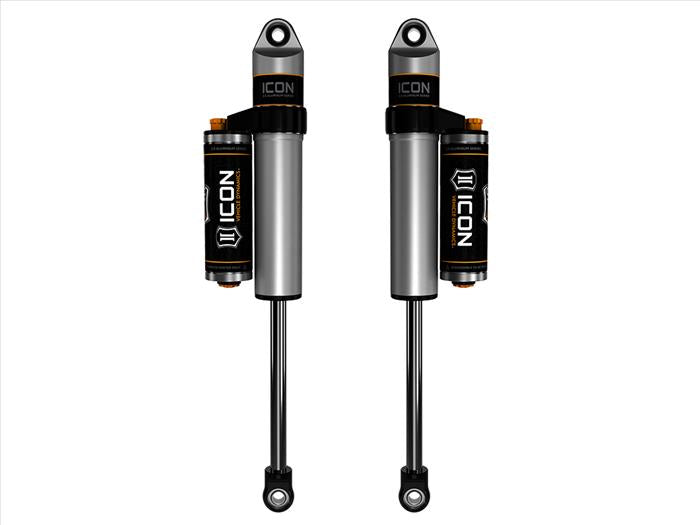

ICON 19-23 RANGER REAR 2.5 VS PB CDCV PAIR 97730CP

ICON 19-23 RANGER REAR 2.5 VS PB CDCV PAIR 97730CP

SKU:97730CP

Regular price $1,448.95
Regular price $1,448.95 Sale price $1,448.95
Sale Sold out

Ships from Manufacture

ICON 19-23 RANGER REAR 2.5 VS PB CDCV PAIR 97730CP



OVERVIEW

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

FEATURES & BENEFITS

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 100% Rebuildable
  • 100% Revalveable

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • TECH NOTE: Compatible with Rangers equipped with 0-1.5" of rear lift over stock
  • TECH NOTE: Not compatible with Ranger Raptor
